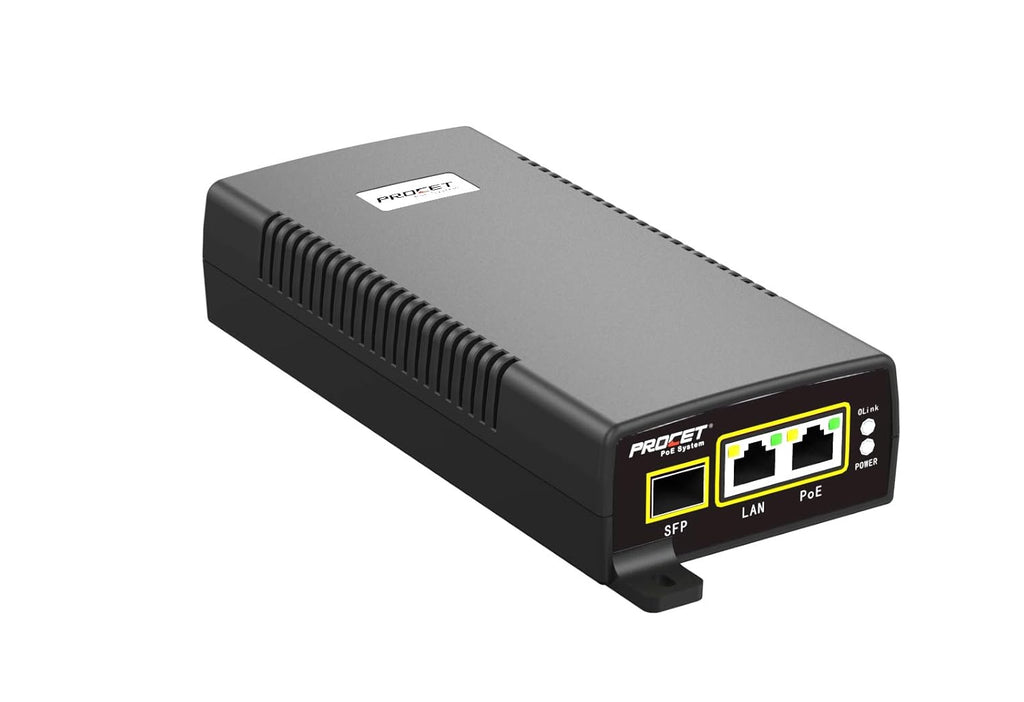

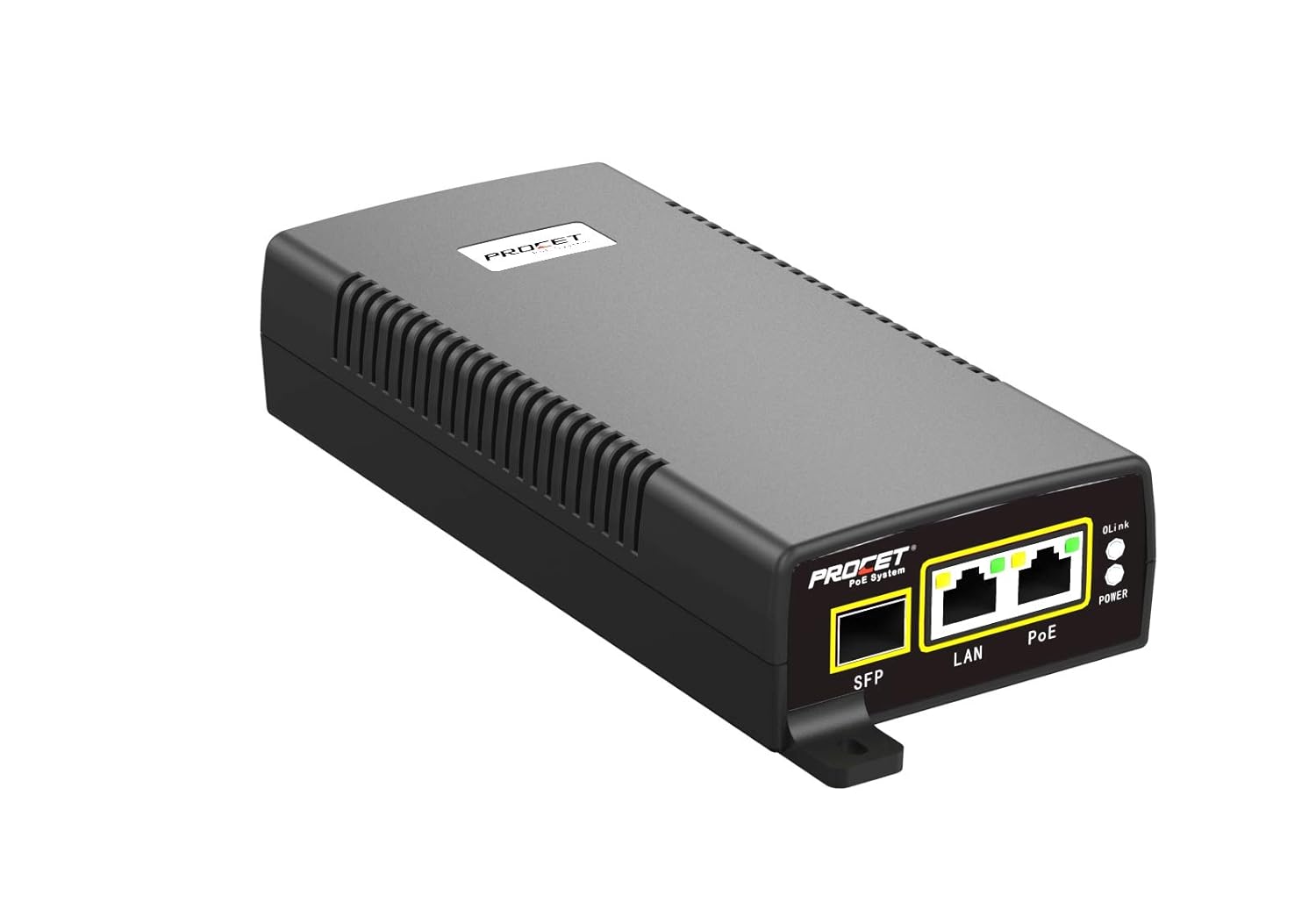

PoE Media Converter with SFP uplink to PoE++ 60 Watts U653
PoE Media Converter with SFP uplink to PoE++ 60 Watts U653
Build-in PoE++ detecting chip inside which will Auto-negotiating IEEE802.3af/at/PoE++ PDs, no worry about powering a non-PoE device, low power devices receive only the power they need. ideal for PTZ cameras, WiFi access point
CE，FCC,UL/E487558, KC，SAA，ST，RCM, CCC，Ukrain，BSMI，EAC，BIS，PSB, NOM, PSE, LOA, more than a dozen countries Certification, have CB report of 60950 and 62368 test standard. All material used are Rohs compliant, complies to PoE++, backward compatible to IEEE802.3af/at standard
Data Speed: 10/100/1000BASE-T for RJ45 Interfaces, 1000BASE-X for SFP Interfaces. Protect output against over voltage, over current, short circuit
SFP slot support Multi mode and Single mode SFP transceiver(SFP transceiver do not included) 1000Base-FX to 10/100/1000Base-TX
Industrial design and high quality components,such as Marvell Chipset, RubyconNCC Capacitor.Temperature hardened -40°C to +55°C (-104°F to +131°F). 6KV Surge protection on both AC and PoE Ports

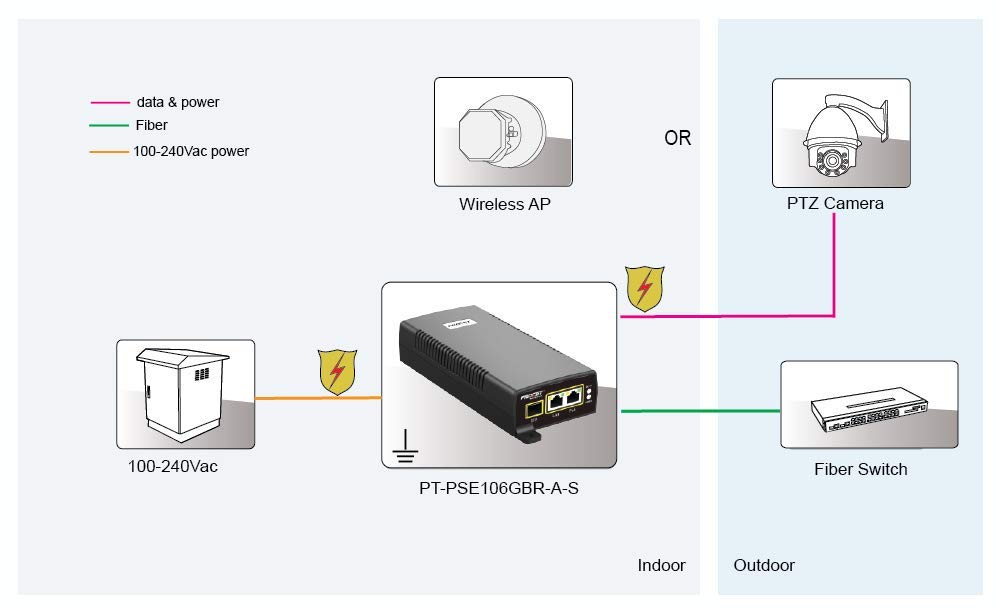

PT-PSE106GBR-A-S is an indoor media converter with PoE functionality which can be used as PoE midspan Injector offers a unique solution to powering long range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications. Enclosed in an IP40 fire retardant plastic case. It also has a LAN data port can be regard as Redundancy of Data input. Equipped with Chipset inside, data is interoperable among LAN port, PoE port and SFP port.
After negotiating 802.3af/at/PoE++ standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. Low power devices receive only the power they need. It works with a wide input voltage of 100-240Vac with 6KV surge protection. It fully complies with PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
- Input :100-240Vac 1.5A 50/60Hz
- Output: 55Vdc 1100mA
- Power Pins: 4/5(+), 7/8(-) and 3/6(+), 1/2(-)
- Data Speed: 10/100/1000BASE-T RJ45 Interfaces, 1000BASE-X SFP Interfaces
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- Full compliant with IEEE802.3af/at/PoE++
- RoHS Compliance
- WEEE Compliance
- Operating Temperature: -40℃ to 55℃
- Operating Humidity: 20% to 90%, non-condensation
- Storage Temperature: -40℃ to 85℃
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Plastic
- Color: Black
- Mounting: Wall-mounted
- IP Rated: IP40
- Size: 218mm X 85mm X 41mm
- Weight: 480g

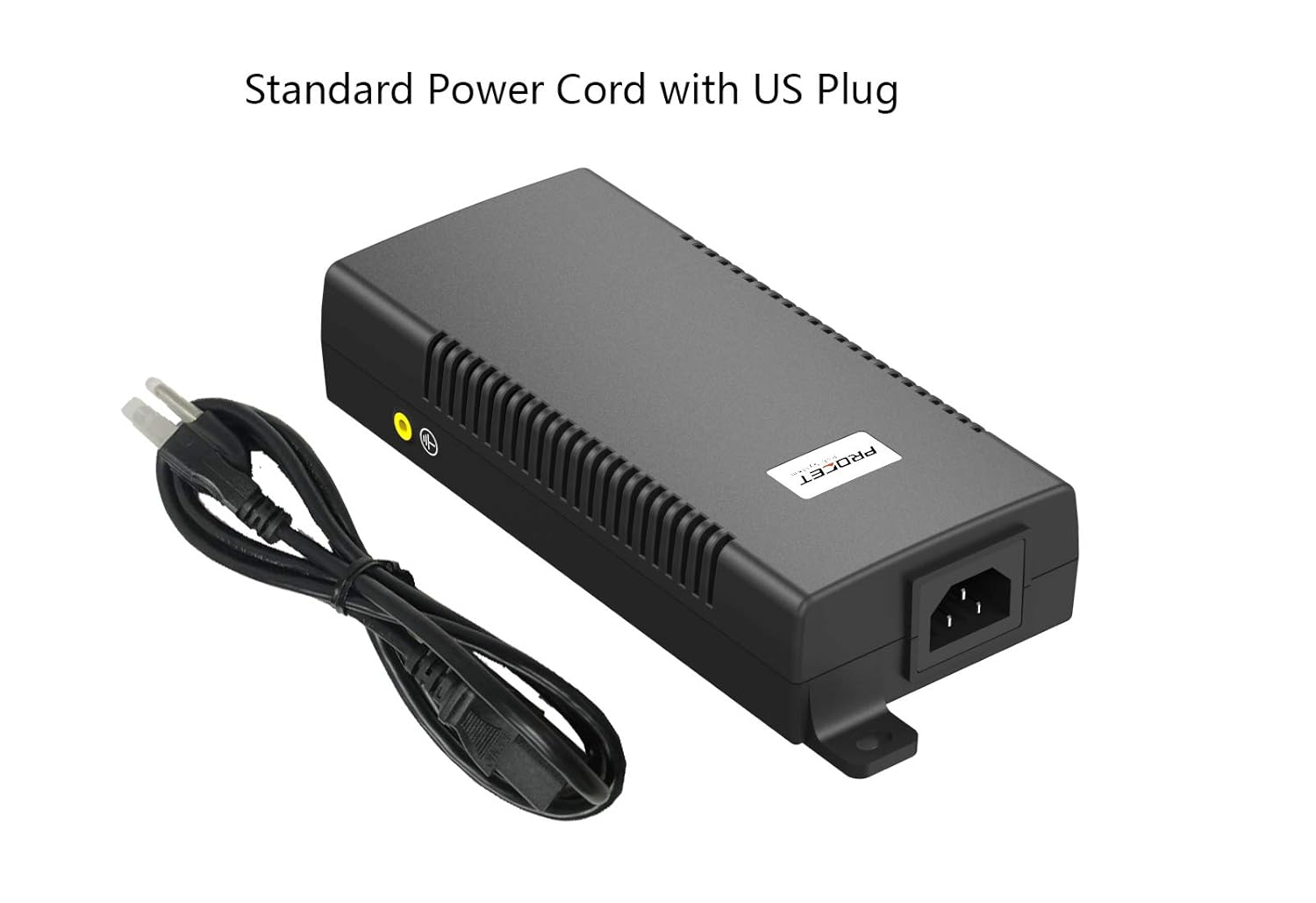

- Packing.：Power Cord x 1(1.5 meters),GND WIRE 16AWG x 1, Manual x 1
